SORTING DEMOLITION GRAB

Rotar Sorting / Demolition Grab

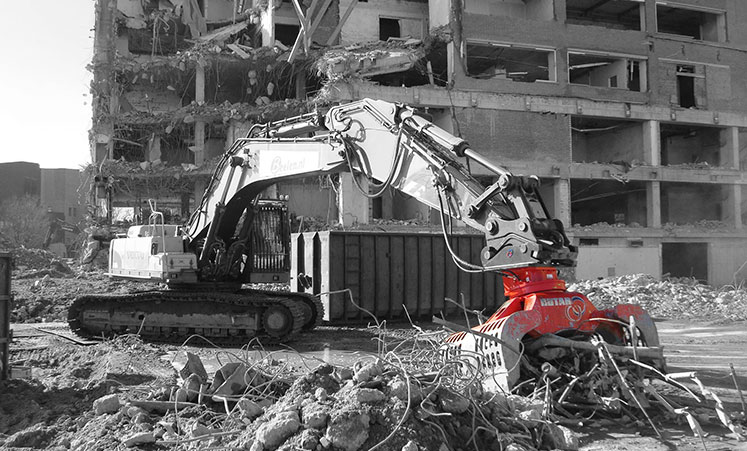

Reliable, service-friendly and extremely strong. The Rotar Grab has been proven to be the perfect grab for industrial demolitions and intensive sorting and recycling applications.

Upper head and slewing ring
The RG Series is fitted with a strong rotating upper head, and a heavy-duty double rowed slewing ring. The hydraulic motors in the upper head generate a high torque, suited for heavy loading in any position.

All fitted with a load control valve
The hydraulic cylinders of the RG Series are all fitted with a load control valve which protects against unexpected opening of the shells. Additionally, the cylinder has an extra-long stroke, to close the shells even when the edges are worn out.

Wear-resistant shells with long bearing pivot points
The RG Series’ wear-resistant shells are made of HARDOX steel and equipped with easily replaceable and rotatable cutting edges. The shells are mounted within the long bearing pivot points of the double-walled construction body with hardened, oversized pins. This design lowers the overall tension in the construction, thereby extending the RG’s durability.
